81 vw caddy 020 rebuild (pics only)

One of my good friends owns a 81 vw rabbit pickup (caddy).  She's been working on it for a couple years now chipping away at one thing at a time.  She asked me to rebuild a manual transmission.  Its a 020 2h (close ratio) out of a 83 rabbit gti.

Enjoy the pics


5th housing removed

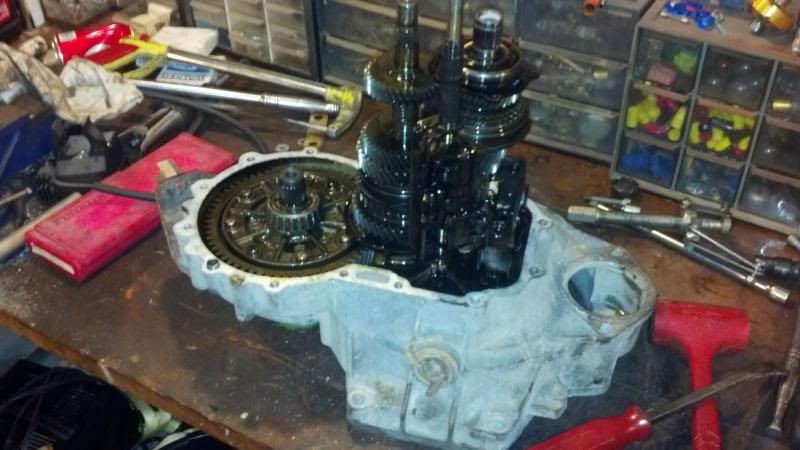

case split


emptied the bottom half of the case

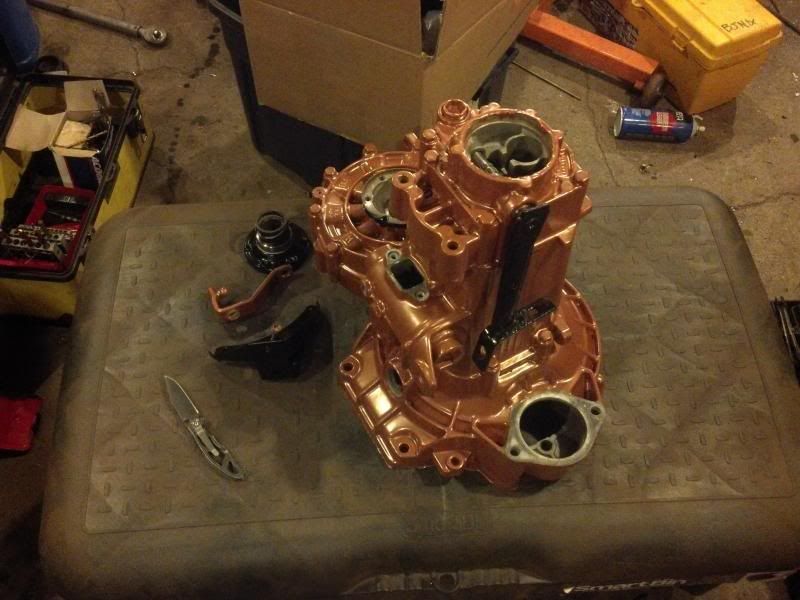

got the case cleaned and power coated


ARP bolt kit for the ring gear, got rid of those crappy rivits

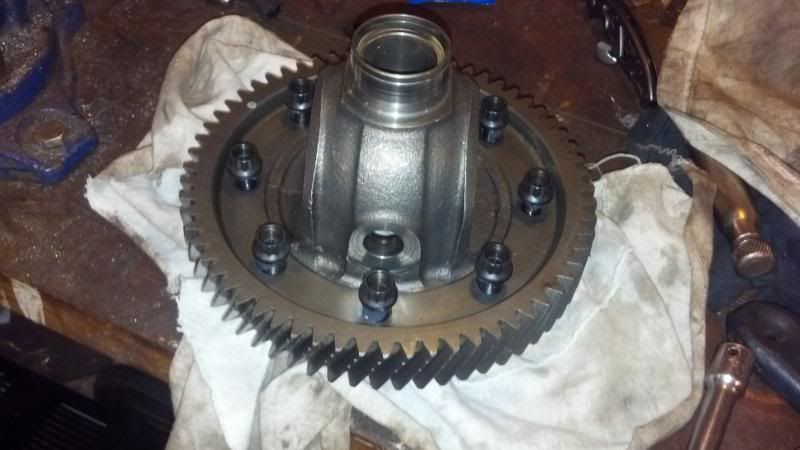

ring and nuts are on

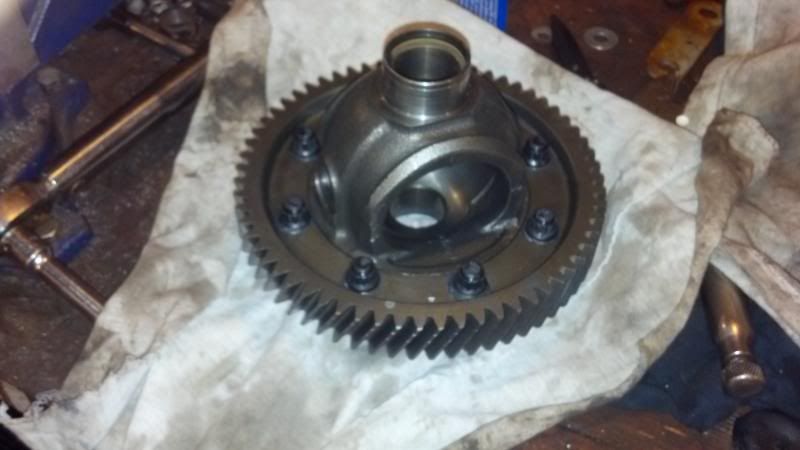

torqued

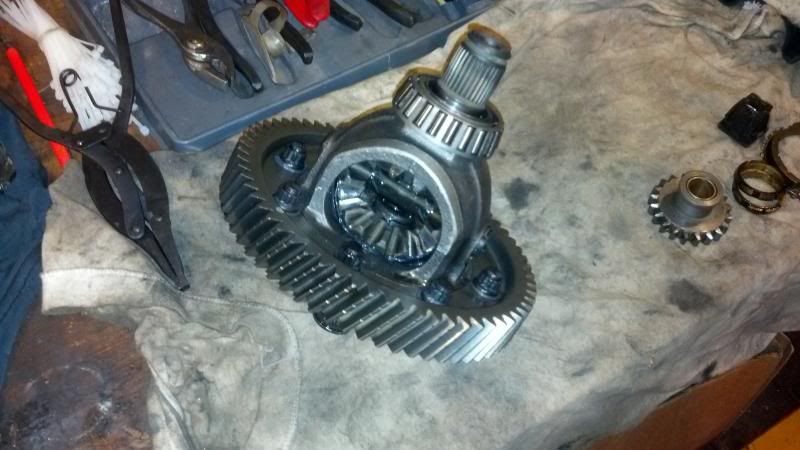

added a new spider gear shim, and put the spider gears and bearings in


Checking the rolling torque of the differential.  Everything was in spec, no new shims needed

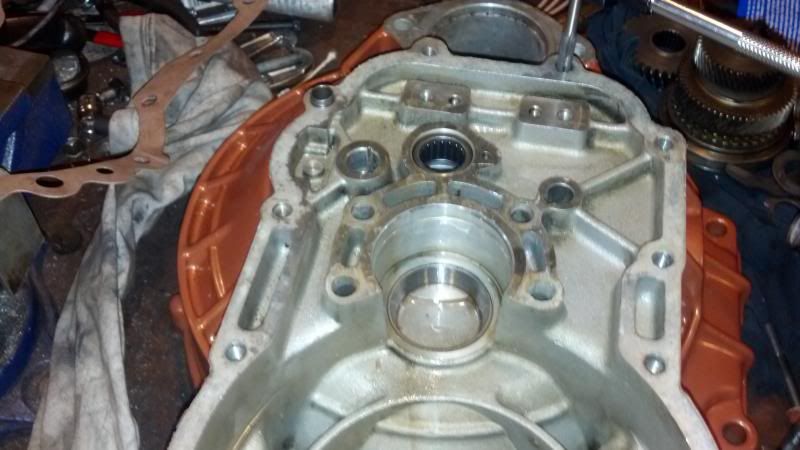

new input and output shaft bearings/races

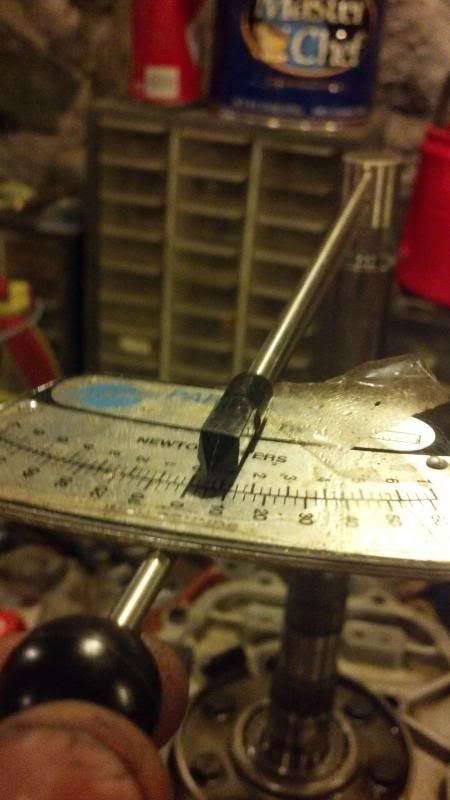

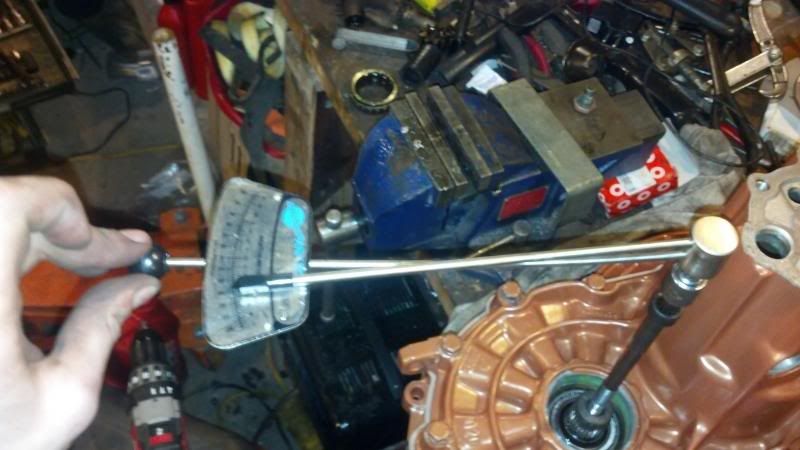

Checking rolling torque of output shaft


Starting assembly with new syncros

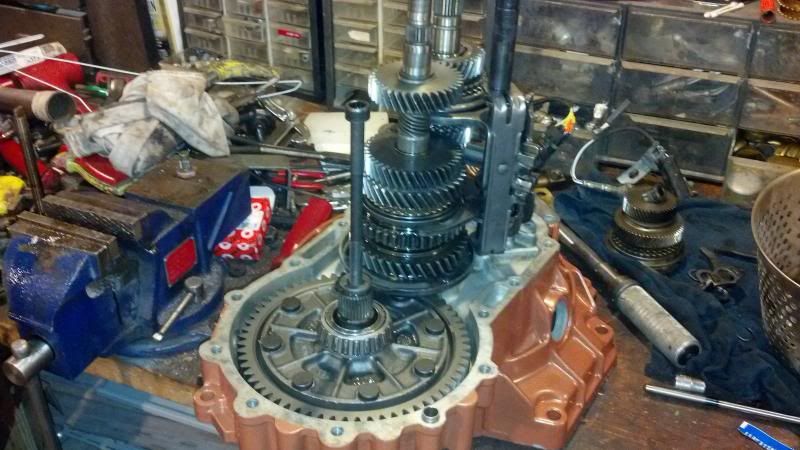

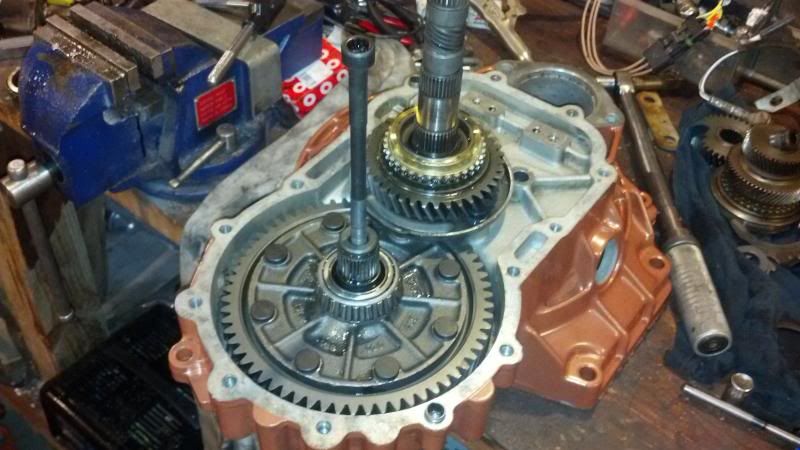

Added input shaft and other gears

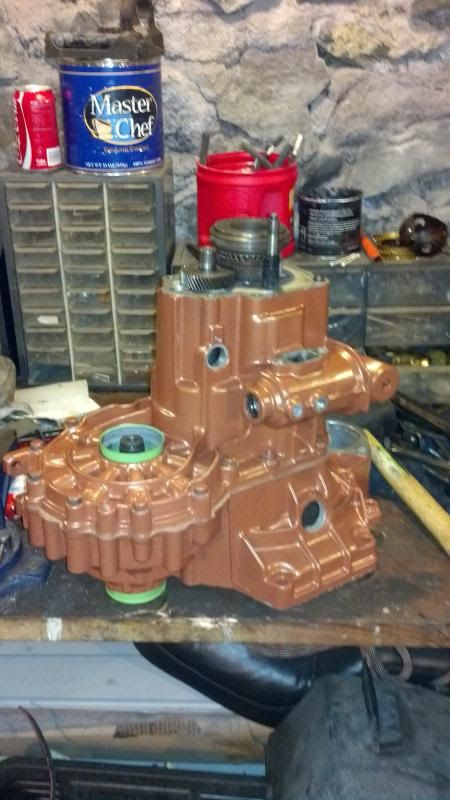

Put the other half of the case on, 5th gear is assembled

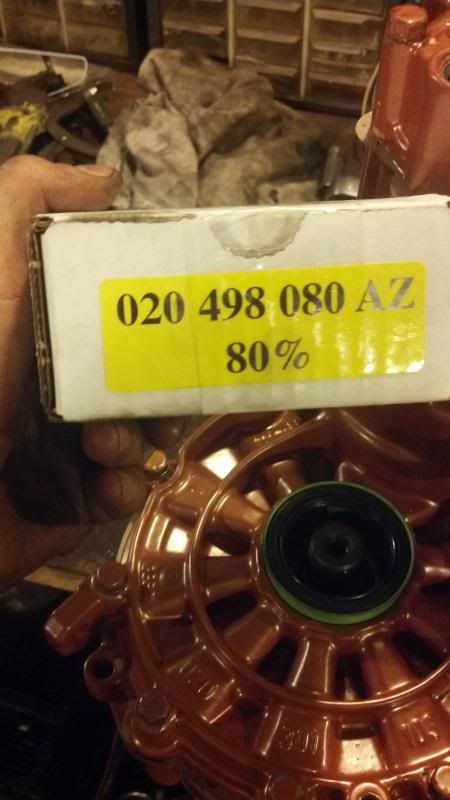

80% slip kit, essentially its a poor man's/woman's limited slip differential.  It works well for how simple it is.

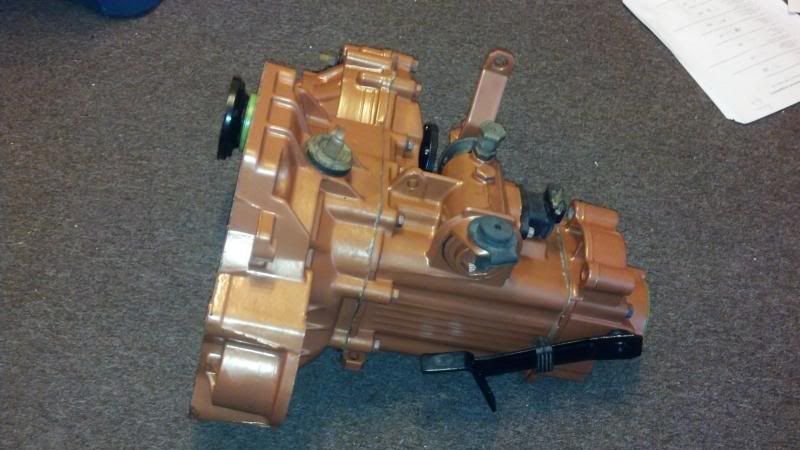

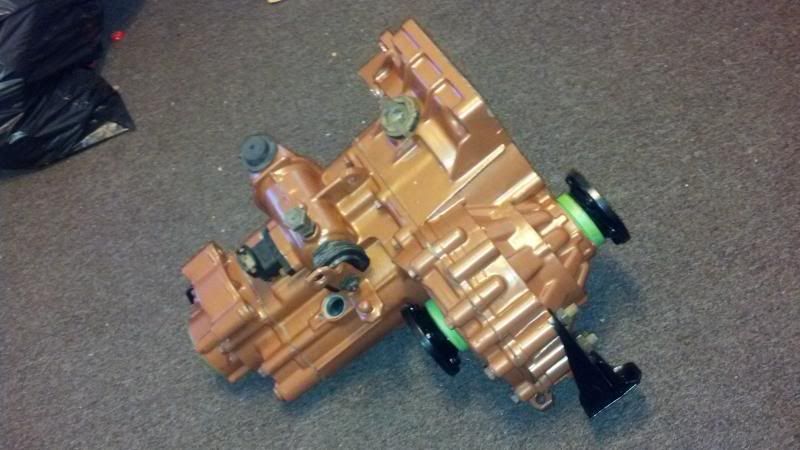

completed and dressed




'

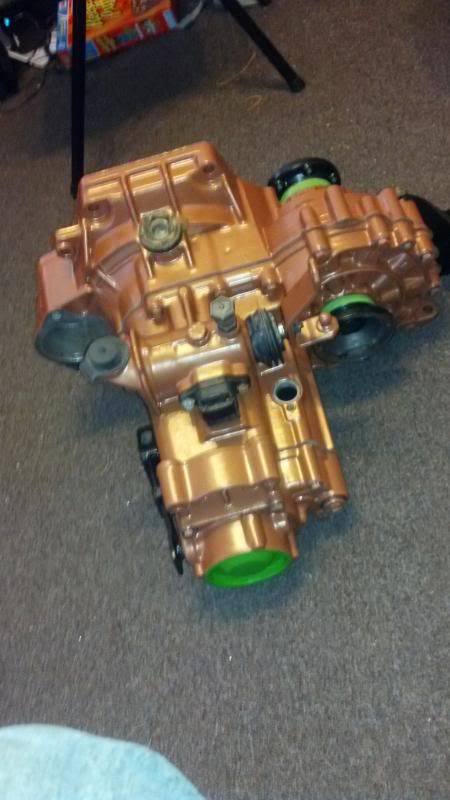

another side


last picture, i promise.

Gonna be building the motor for this vehicle too!
